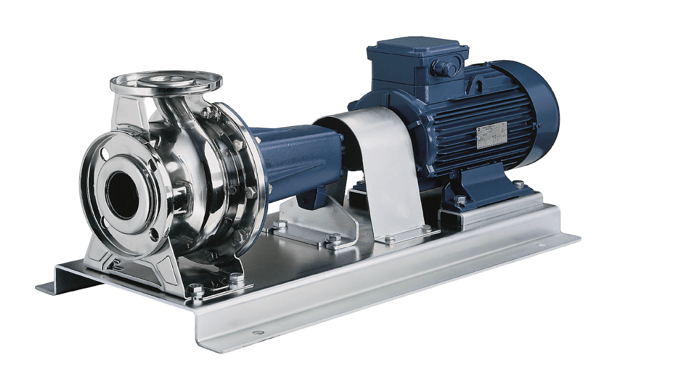

Regarding pump castings, customers care most about durability, efficiency, and leak-proof performance. QD is a specialized foundry for pump castings. We master precision investment casting. We solve common pump issues like wear, cavitation, and sealing problems. We provide reliable solutions for our customers.
Analysis of Common Pump Issues

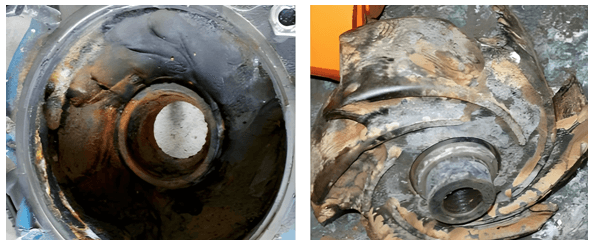

Pumps and impellers often face various problems during operation. These issues affect the pump’s lifespan and efficiency. Here are the most common challenges with pump castings:
- Wear: Solid particles in the fluid or high-speed flow cause surface wear. This leads to efficiency loss and risk of leakage.
- Corrosion and Cavitation: Corrosive substances in seawater or chemical media erode the metal surface. Cavitation occurs when pressure changes cause bubbles to form and collapse, damaging the surface.
- Casting Defects: Defects like shrinkage porosity, gas holes, or dimensional inaccuracy. If not controlled during casting, these defects create stress points and cause early failure.
Industry data shows over 30% of pump failures stem from insufficient casting quality. QD’s strict process management reduces these problems at the source. This ensures components maintain high performance throughout their service life.
Selecting the Best Material for Different Media
Choosing the right material is the first step to ensure pump durability. Stainless steel is the preferred choice for its corrosion resistance and strength. However, different working conditions require specific grades. The table below shows common stainless steel materials and their suitable applications:
| Grade | Characteristics | Applicable Mediums | Precautions |
| 304 Stainless Steel | Good corrosion resistance, high cost-effectiveness | Clean water, general industrial water quality, weakly acidic environments | Not suitable for high-chloride ion environments. Such as seawater |
| 316 Stainless Steel | Contains molybdenum element, enhancing corrosion resistance | Seawater, chemical media, highly corrosive environments | Suitable for handling liquids containing chloride ions. Longer service life |
| Duplex Stainless Steel | High strength, stress corrosion resistance | Extreme corrosive environments, such as petrochemical industry | Higher cost. But suitable for high-pressure and high-temperature working conditions |
| Cast Iron or Carbon Steel | Economical and practical, high strength | Non-corrosive media. Such as clean water or low-pressure applications | Surface treatment required to prevent rust |
Selection Advice:
- For general water pumps, 304 stainless steel is sufficient.
- In seawater or chemical pumps, 316 stainless steel effectively resists pitting and crevice corrosion.
- If the budget allows and conditions are harsh, duplex stainless steel provides a longer service life.
Our team will recommend the most suitable material based on your specific medium, temperature, and pressure parameters.
How We Ensure Dimensional Accuracy and Surface Finish

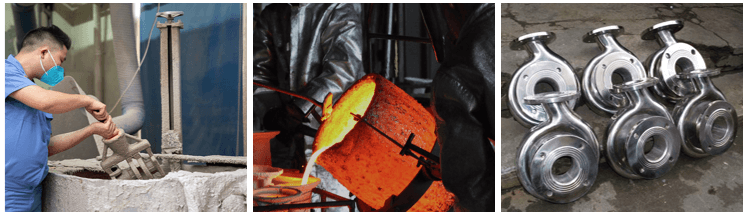

Investment casting is particularly suitable for complex pump casings and impellers. QD ensures precise dimensions, uniform wall thickness, and excellent surface finish through these key steps:
1. Mold Design and Wax Pattern Production
We use CAD/CAM software for 3D modeling. We optimize the gating system design to reduce flow resistance.
Wax injection is performed in a temperature-controlled environment. This ensures dimensional consistency for every wax pattern.
2. Shell Building: Multi-layer Ceramic Shell
The shell’s thickness and uniformity directly affect the casting’s surface quality. We build a multi-layer ceramic shell through repeated dipping and coating processes. We use automated shell-building lines to control slurry viscosity and drying time. This prevents the shell from cracking or deforming.
3. Dewaxing and Firing
The wax is removed from the shell using a high-pressure steam autoclave. This minimizes residue. The shell is then fired in a kiln with precise temperature control. This process removes all moisture and volatile content, significantly increasing the shell’s strength.
4. Pouring and Solidification Control
We pour the molten metal in a vacuum or protective atmosphere. This prevents oxidation and inclusions. We use simulation software to predict the solidification process. This helps us optimize the gating and riser design. The result is uniform wall thickness, avoiding shrinkage porosity and internal stress.
5. Post-Processing and Quality Inspection
We cut, shot-blast, and heat-treat the castings (e.g., solution treatment). This enhances their mechanical properties. We inspect each part using CMM, X-ray inspection, and surface roughness checks. This ensures it meets all drawing requirements.
Key Advantages:
- Dimensional Accuracy: We control dimensional tolerances within CT6 to CT8. This meets high-precision assembly requirements.
- Surface Finish: We achieve a surface roughness of Ra 3.2 μm or better. This reduces flow resistance and improves pump efficiency.
- Uniform Wall Thickness: We maintain wall thickness variation within ±0.5mm. This lowers the risk of stress concentration.
Tangible Benefits for Our Clients
QD’s investment cast pump components deliver the following value:
Reduced Downtime: Durable components extend maintenance intervals. Mean Time Between Failures increases by over 20%.
Lower Maintenance Costs: Precise dimensions and a smooth finish reduce wear on seals and the need for frequent replacements.
Improved Energy Efficiency: Optimized flow path design and material selection increase pump efficiency by 5-10%, saving energy.
Customized Service: QD provides full technical support from drawing to finished product. This ensures the part perfectly matches your equipment.
Case Study: A pump manufacturer switched to QD’s 316 stainless steel impeller. Its service life in seawater increased from 2 years to 5 years. Their annual maintenance costs dropped by 30%.
Contact Us
Whether you are a pump manufacturer or need replacement parts, QD can provide you with reliable and durable castings. We have extensive experience in investment casting. We specialize in custom pump components. Our engineering team will respond within 24 hours to provide you with professional technical advice.
FAQ
1. What is the typical delivery time?
The standard lead time is 4-6 weeks. The exact time depends on the part’s complexity and order quantity. Expedited service can shorten it to 2-3 weeks.
2. How do you ensure defect-free castings?
We implement full-process quality control. This includes material inspection, process monitoring, and final inspection. Each batch comes with a test report.
3. Do you support small trial orders?
Yes. We encourage customers to start with small trial orders to verify design and performance. The minimum order quantity can be as low as 10 pieces.
4. Which industries are QD’s pump components suitable for?
They are widely used in water treatment, chemical, petroleum, marine, and energy industries. They are compatible with various corrosive media.
5. Can QD adapt quickly if design changes occur?
Yes, absolutely. We use a flexible production system. We support drawing modifications and process optimization. This ensures we can respond rapidly to customer needs.
