In the field of lost wax casting, the shell-forming process is a critical step in determining casting quality. Silica sol and water glass are the two most commonly used shell-forming binders. While they may appear similar, they are actually quite different. This article will delve into the similarities and core differences between these two processes. And provide practical selection advice to help you make informed decisions for your projects.
What Are Colloidal Silica and Water Glass?
Silica Sol Process

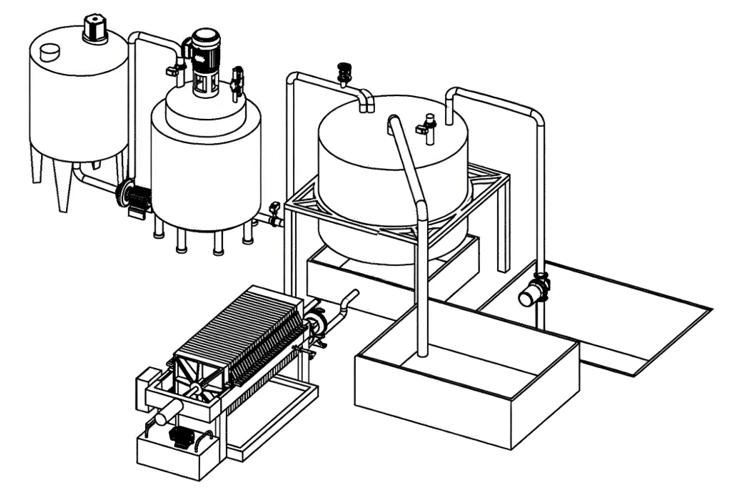

Silica sol is a stable dispersion of nano-sized silicon dioxide (SiO₂) particles in water or a solvent. The shell formation process occurs through gelation of the colloidal particles, with water evaporating during drying. The SiO₂ particles cross-link to form a strong three-dimensional network, thereby firmly bonding refractory materials (such as zircon sand and mullite).
Water Glass Process
Water glass is an aqueous solution of sodium silicate (Na₂O·mSiO₂). It is strongly alkaline. Its shell production process relies on chemical hardening: after the shell is coated with refractory material, it is immersed in a hardener (usually ammonium chloride, NH₄Cl). This chemical reaction produces silica sol (SiO₂), which further gels. Simultaneously, sodium chloride (NaCl) and ammonia (NH₃) are released, resulting in rapid hardening of the shell.
Why Are Both Colloidal Silica and Water Glass Widely Applied?
Despite their different chemical compositions and mechanisms, the two processes share several core advantages, making them the mainstream choice for investment casting:
Water-based systems: Both use water as a solvent. It is non-toxic and non-flammable, resulting in a relatively safe production environment and low VOC (volatile organic compound) emissions.
They share the same core purpose: They both serve as a binder, bonding refractory materials into shape and creating a mold shell capable of withstanding the impact of high-temperature molten metal and thermal shock.
Suitable for investment casting: Both can perfectly replicate the intricate details of wax patterns, producing precision castings with precise dimensions and smooth surfaces. They are widely used in aerospace, automotive, medical device, and other fields.

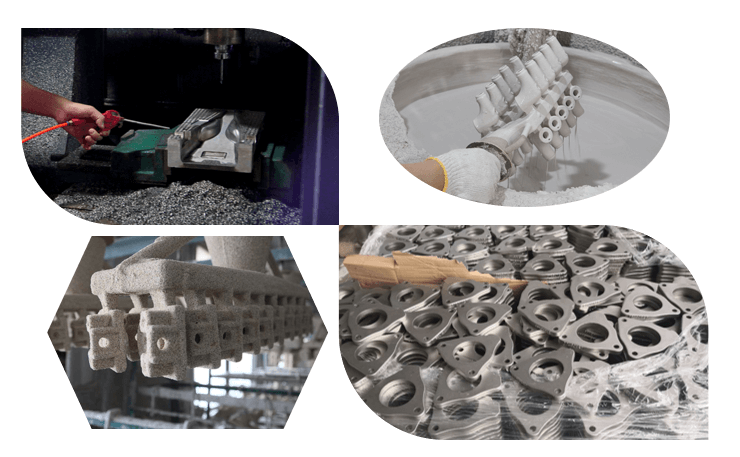

The process steps are similar: Both follow a cycle of “coating – sanding – drying/hardening” until the desired mold shell thickness is achieved.
Core Differences Between Colloidal Silica and Water Glass
The differences between the two determine their applicable product grades and production models. The following table compares their key features:
| Characteristic Dimensions | Characteristic Dimensions | Water Glass Process |
| Chemical Composition | Nano – SiO₂ colloidal solution. Neutral | Sodium silicate aqueous solution. Strongly alkaline |
| Hardening Mechanism | Physical hardening: Drying and dewatering. Natural gelation | Chemical hardening: Ion – exchange reaction with hardening agent (e.g., NH₄Cl). Rapid gelation |
| Shell – making Cycle | Long (Long drying time for each layer. Usually 8 – 24 hours) | Short (Chemical hardening for each layer only takes several minutes to dozens of minutes) |
| Shell Performance | High strength, good high – temperature stability, excellent air permeability | Low strength, poor high – temperature stability, prone to “creep” |
| Casting Surface Quality | Excellent (Ra value can reach 3.2μm or even lower). High dimensional accuracy | General (Ra value is usually above 12.5μm). Prone to burrs, depressions and other defects |
| Production Environment | Clean. No pungent odor | Ammonia gas escapes. The working environment has a pungent odor. Wastewater contains ammonium chloride and salts. Need to be treated |
| Cost | High material cost. But the qualified rate of shell is high. Less rework | Extremely low material cost. But energy consumption, environmental protection treatment cost and scrap rate may increase the total cost |
| Automation Adaptability | Very suitable for building automatic shell – making production lines | High automation difficulty. Mostly seen in semi – automatic or manual production lines |
In-depth Analysis:
Hardening Mechanism and Efficiency:
The drying of silica sol is a purely physical process, relying on water evaporation and colloid shrinkage. This is time-consuming and limits production efficiency.
The chemical hardening of water glass is a rapid ionic reaction. It is extremely efficient and suitable for fast-turnaround mass production.
Mold and Casting Quality:
Silica sol molds have a dense and uniform structure. They have strong resistance to deformation (creep) at high temperatures and can cast high-melting-point alloys (such as stainless steel and alloy steels). They also produce a nearly flawless surface.
Water glass molds retain salts such as Na⁺ and Cl⁻ during the hardening reaction. These salts easily form eutectics at high temperatures, reducing the mold’s high-temperature strength and stability. This results in a relatively rough surface finish on the casting. They are more suitable for applications where surface quality requirements are less stringent, such as carbon steel, cast iron, and copper alloys.
Environmental Protection and Operational Benefits:
The silica sol process is more environmentally friendly. It is odorless and produces no harmful byproducts.
The sodium silicate process produces ammonia and saline wastewater, which require environmentally friendly treatment. This increases subsequent costs and operational complexity.
Selection Advice: How to Make the Best Choice?
Choosing the right process requires careful consideration based on your specific needs. Here are a few key recommendations:
1. Consider product positioning and requirements:
- Striving for high quality, silica sol is the preferred process: If your products target the high-end market, such as aerospace parts, high-end medical devices, turbine blades, and other applications that place stringent requirements on surface quality, dimensional accuracy, and internal cleanliness, silica sol processing is the best choice.
- Cost-sensitive, consider water glass: If you are producing low- and mid-range carbon steel castings such as hardware tools, pipe fittings, and valve blanks that do not require high surface finishes, and you have large order volumes and tight delivery deadlines, the water glass process remains highly attractive due to its extremely low material costs and fast cycle times.
2. Consider the investment and cost structure:
- Silica sol: Initial investment in a drying control system (constant temperature and humidity air conditioning) is required. Material costs are also high. However, its high yield reduces rework and scrap losses. Its overall cost advantage is particularly advantageous in the high-end market.
- Sodium silicate: The equipment investment threshold is low. But, budget for environmental treatment equipment (exhaust gas and wastewater) and ongoing operating costs is required. Carefully calculate environmental and scrap costs.
3. Consider the production model and scale:
- Automated large-scale production: The silica sol process is easier to integrate into a fully automated production line, enabling stable, high-quality, and large-scale production.
- Semi-automatic or manual production lines: The water glass process offers greater flexibility in this production model. It is suitable for small and medium-sized foundries starting out or taking on diverse small-batch orders.
4. Consider a composite process:
Many established foundries adopt a “composite shell” strategy:
- Silica sol for the surface layer: This ensures the first layer in contact with the molten metal has an extremely smooth finish and chemical stability.
- Water glass for the back layer: This leverages its rapid hardening and low cost for non-critical structural layers. This shortens the overall shell production cycle and reduces overall costs. This is a very practical and economical compromise.
Conclusion
Silica sol and water glass processes are the two cornerstones of investment casting. Silica sol represents a “quality-first” approach. It trades longer cycles and higher costs for top-tier casting quality.
The water glass process, embodies a production philosophy prioritizing efficiency and cost. It remains resilient within its applicable fields.
For decision-makers, there’s no best process, only the most suitable one. Only by thoroughly understanding the product’s positioning, budgetary framework, and production conditions can one make the most informed choice between these two processes.
FAQ
1. What’s the most important factor in choosing a casting process?
Casting quality is key. For high precision and smooth finish, colloidal silica is a must. For less demanding surface finishes and cost sensitivity, water glass can be considered.
2. Can the long drying time of the silica sol process be shortened?
Yes. By controlling the drying chamber’s temperature and humidity (e.g., 25 ± 2°C, 60 ± 5% humidity) and using forced ventilation, the cycle time per layer can be effectively shortened, improving efficiency.
3. How are environmental issues addressed in the sodium silicate process?
An ammonia collection and treatment device (such as an acid spray tower) and a wastewater treatment system are required to neutralize the exhaust gas. And remove salt and suspended solids from the wastewater through precipitation.
4. What are the main cost differences between the two processes?
Silica sol has high material costs and a low overall scrap rate. Water glass has extremely low material costs, but high hidden costs (environmental protection investment, scrap disposal, and subsequent polishing costs).
5. Do all stainless steel castings require colloidal silica?
Most castings require colloidal silica. However, some large, thick-walled stainless and carbon steel parts with less demanding finishes may use the colloidal silica process to control costs. But, this carries a higher risk of cleaning and rework.
